Oil sensor not needed – this engine reports oil temperature electronically.
Blade Series · BMW 5 Series/6 Series E6x
More data. More area. Everything your BMW doesn't show you otherwise.

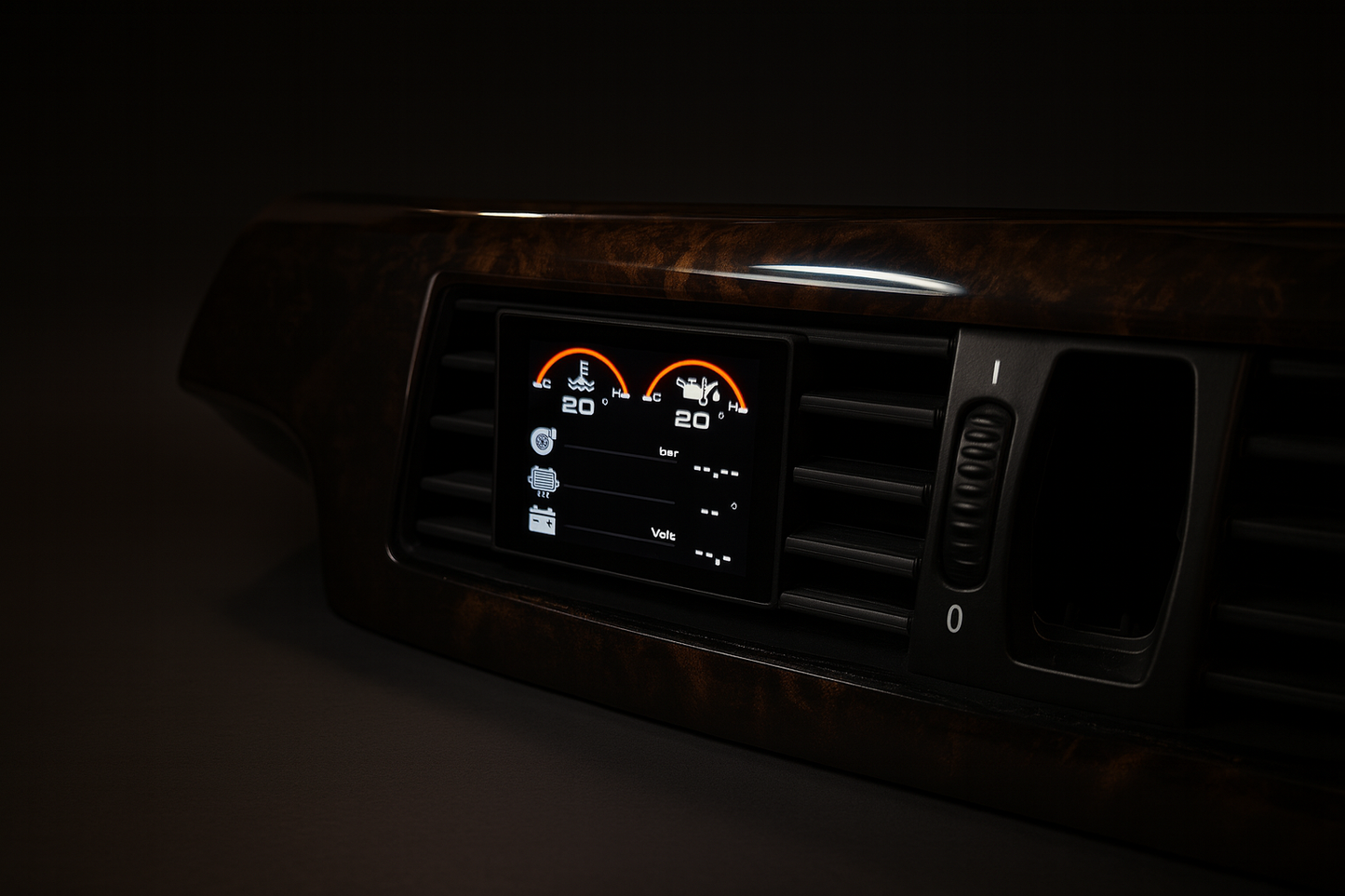

The 2.41″ AMOLED display sits in the original air vent and shows boost pressure, oil temperature, rail pressure, DPF, and more in real time. Two designs, touch control, freely selectable colors, factory-like look.
Plug & PlayOEM lookTouchFreely selectable colorsUpdates via Wi-Fi
Real engine dataDirectly from the ECU, in real time – not estimated.
On-board diagnosticsFault codes, DPF, injectors – no laptop needed, directly on the display.
Fits the cockpitMounted in the air vent, auto-brightness, night dimming.
Stays up to dateNew features arrive directly on the device via Wi-Fi update.
Live data
* Oil temperature for M47, N47, and M57 only with the optional oil sensor (+30 €, replaces the oil drain plug). The N57 provides it electronically. Scope depends on engine and equipment.
Diagnostics & functions
- Read & clear fault codes, with plain text for diesels
- DPF details: soot mass, ash, differential pressure, regeneration status
- Injector quantity adjustment per cylinder
- Actual/target comparison for rail pressure, boost pressure, air mass
- Electronic oil level (E9x Diesel)
- Cluster self-test & needle sweep on startup
- Live diagram with up to 4 values
- Freely adjustable alarms (e.g., oil temperature, boost pressure)
- Max values memory & warm-up assistant
- Power correction for tuned engines
- G-force display & acceleration timer
- Data logger (CSV via Wi-Fi)
Display & operation
- 2.41″ square AMOLED touch display (600 × 450 pixels), two designs selectable
- Touch operation, menus in German, English, French, Spanish, Italian, Polish
- Accent color freely selectable, assign values per screen yourself
- Automatic brightness based on instrument lighting, night dimming
- Switches on and off with the ignition – no button press necessary
Compatibility
Models: E60 5 Series Sedan · E61 5 Series Touring · E63 6 Series Coupé · E64 6 Series Convertible (2003–2010)
Engines: Diesel M47, N47, M57, N57.
Not sure if it fits? The Product Finder will guide you to the right set in three steps.
Scope of delivery & installation
- Blade Series display module
- Air vent with integrated bracket
- Pre-assembled cable set
- Optional: Oil temperature sensor (replacement for the oil drain plug)
- Digital installation manual (PDF, German & English) – all manuals
Installation can be done with basic tools; nothing on the vehicle is modified and everything can be removed without leaving any residue.
Delivery time & support
Delivery time: approx. 2 weeks. Every device is made to order and tested before shipping.
Support: Mon–Fri 09:00–18:00 via email or Instagram. The Settings Manual answers questions about configuration.
Made to orderTested before shippingUpdates via Wi-FiRemovable without residue
